41 12 557 Replacing Middle Luggage Compartment Floor Section (Tail Panel Removed): Notes

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedures for (REPAIR STAGE 3) !

STRIP DOWN VEHICLE

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required (refer to Electronic Parts Catalogue):

(1) Luggage compartment floor, rear
(2) Reinforcement, side member

Following CONSUMABLES are required:

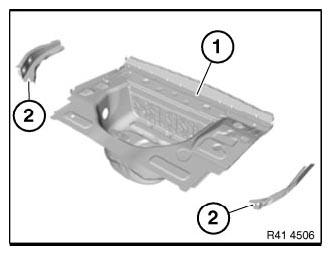

Fig 1: Identifying Rear Luggage Compartment Floor And Side Member Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5b	1
Blind rivets N3	53
Blind rivets N1	4
EMC screws	2
Cleaning agent R1	1
Sealant D1
