41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Observe (REPAIR STAGE 2) procedure!
Following new body parts are required (refer to Electronic Parts Catalogue):

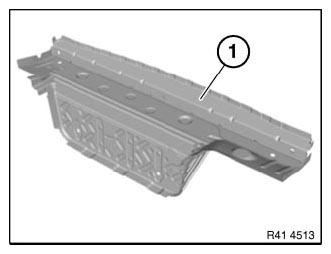

- (1) End of luggage compartment floor
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 3 |
| Blind rivets N6 | 10 |
| EMC screws | 3 |
| Cleaning agent R1 | 1 |
| Cavity wax remover | |
| Sealant D1 |
