New part preparation

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

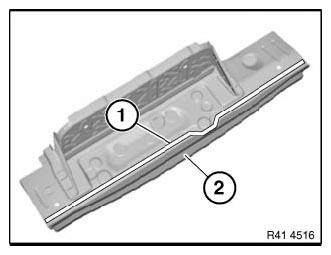

Open welded connections in area (1) and remove cross member (2).

Fig 1: Identifying Cross-Member And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below.

Adjust cross member in combination with tail panel to fit and secure.

Set 6 bore holes 4.2 mm for blind rivets N6 in the area (1).

In areas (2) set 3 bore holes 4.2 mm for blind rivets N3 .

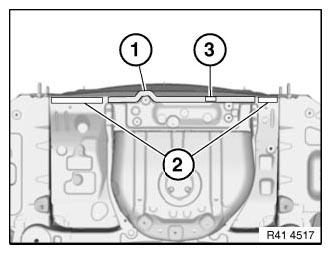

Fig 2: Identifying Cross-Member And Blind Rivets Installing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is described on the left side. Right side identical.

Set 2 bore holes 4.2 mm for blind rivets N6 in the area (1).

Remove cross member (2) again and deburr bore holes.

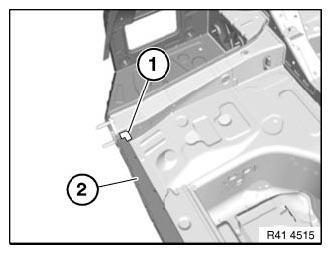

Fig 3: Identifying Cross-Member And Blind Rivets Installing Area

Courtesy of BMW OF NORTH AMERICA, INC.
