Installing cross-member
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not grind new parts and body in area of bonding surfaces.
Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.
Apply adhesive to bonding surfaces.
Install cross member and rivet with blind rivets.

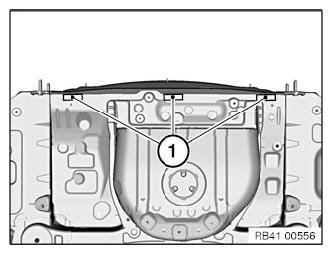

After hardening of the adhesive install 3 EMC SCREWS in the areas shown (1).
