Removal of luggage compartment floor and both side members

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Operations described predominantly on the left side. Right side identical.

Mark severance cut (1) at component edge and cut.

Open welded connections in area (2).

Installation note:

New part is welded overlapping in area of severance cut.

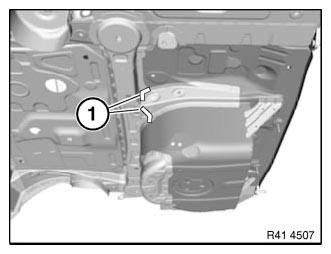

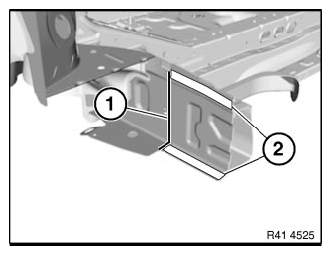

Fig 1: Identifying Luggage Compartment Floor And Side Members Severance Cut And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Measurement a = approx. 30 mm from component edge.

Open welded connections in area (2).

Installation note:

New part is welded overlapping in area of severance cut.

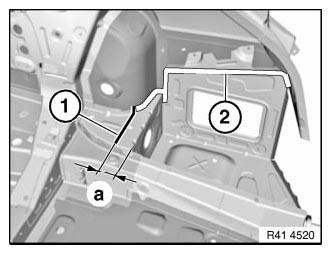

Fig 2: Identifying Outer Panel Severance Cutting Position And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

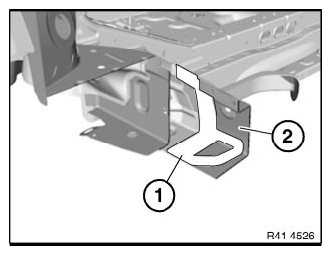

Fig 3: Identifying Luggage Compartment Floor And Side Members Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove the luggage compartment floor.

NOTE: Shown without side panel for purposes of clarity.

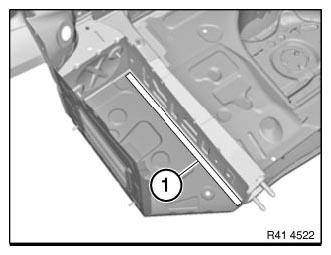

Fig 4: Identifying Luggage Compartment Floor Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below.

Open welded connections in area (1).

Fig 5: Identifying Luggage Compartment Floor Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.

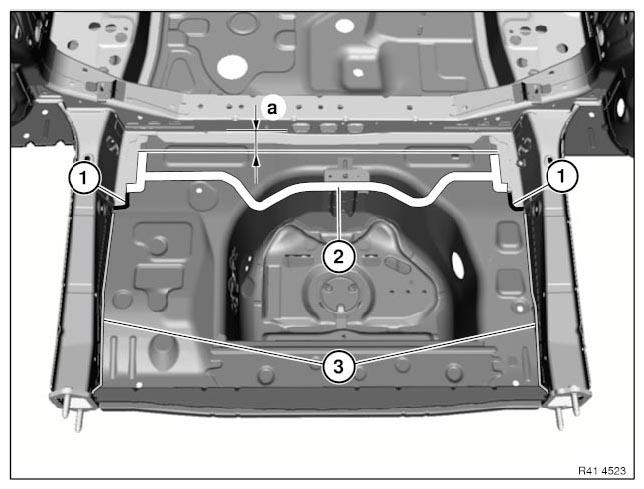

Fig 6: Identifying Luggage Compartment Floor And Side Member Severance Cut Dimension And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension a and cut.

IMPORTANT: Cut outer metal panel only.
Measurement a = approx. 45 mm.
Mark severance cuts (1) at component edge and cut.
Open welded connections in area (2).
Roughly cut luggage compartment floor along side member (3).
Remove trunk floor.

NOTE: New part is installed overlapping in the area of the severance cuts.

Mark severance cut in accordance with dimension and cut.

A = approx. 80 mm

Installation note:

Weld new parts in areas (1) and (2) as standard.

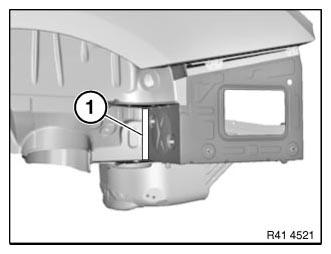

Fig 7: Identifying Luggage Compartment Floor And Side Member Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cut outer panel only.

Mark severance cut (1) and cut.

Open welded connections in areas (2).

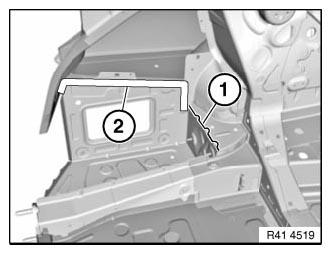

Fig 8: Identifying Outer Panel Severance Cutting Position And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1) and remove part section side member (2).

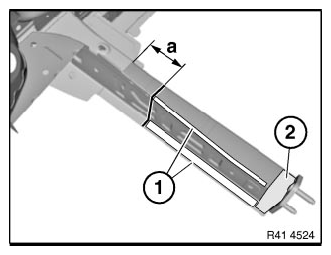

Fig 9: Identifying Side Member And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.
