41 12 535 Replace Luggage Compartment Floor And Both Side Members (Tail Panel Trim Removed): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Observe procedure of REPAIR STAGE 3 .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

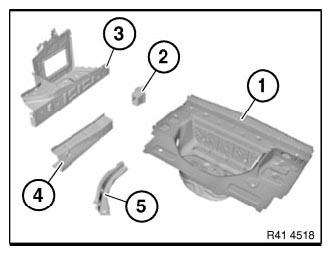

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) Luggage compartment floor, rear
- (2) Fixture, bumper, left and right
- (3) Luggage compartment floor, left and right
- (4) Extension, side member, left and right
- (5) Reinforcement, side member, left and right
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 53 |
| Blind rivets N1 | 4 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
