41 33 040 Replacing Front Left Or Right Side Wall Holder

General information:

Procedure OBSERVE  repair stage 2!

Following new body parts are required (refer to Electronic Parts Catalogue):

• (1) Holder, side wall, front (variant 1)
• (2) Holder, side wall, front (variant 2)

Following CONSUMABLES  are required:

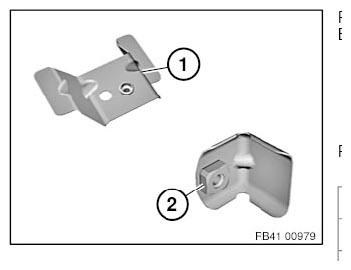

Fig 1: Identifying Front Side Wall Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

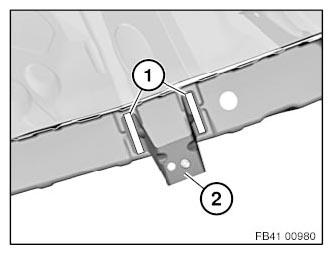

Fig 2: Identifying Side Wall Holder And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivets N3.

Remove new part and deburr holes.

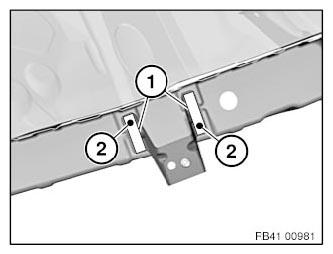

Fig 3: Identifying Bonding Surfaces And Blind Rivets Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

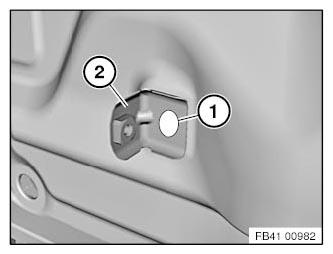

Fig 4: Identifying Side Wall Holder And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

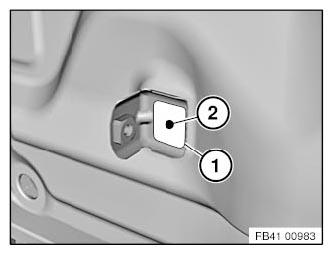

Fig 5: Identifying Blind Rivet Bore Hole And Adhesive Applying Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
