41 61 050 Removing And Installing/Replacing Left Or Right Hinge For Engine Compartment Lid (Engine Compartment Lid Removed)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

Position suitable cloth under engine compartment lid without gaps.

Fig 1: Identifying Cloth Under Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After nuts have been slackened no lateral forces must be exerted on the engine compartment lid!

Unscrew nuts (1).

Tightening torque 41 61 1AZ .

REMOVE GAS PRESSURE SPRING

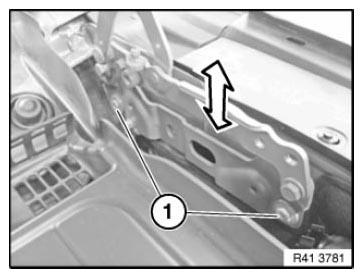

Fig 2: Identifying Hinge Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Installation note:

Tightening torque 41 61 3AZ .

ADJUST hinge together with engine compartment lid.

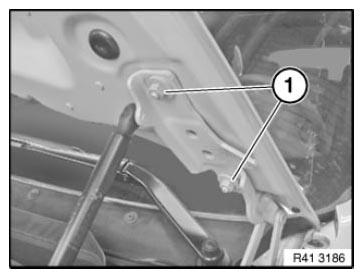

Fig 3: Adjusting Hinge

Courtesy of BMW OF NORTH AMERICA, INC.
