41 61 001 Replacing Engine Compartment Lid
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Support engine compartment lid in fully opened position with suitable apparatus.
IMPORTANT:
Removal of the engine compartment lid must be carried out with the assistance of a second person.

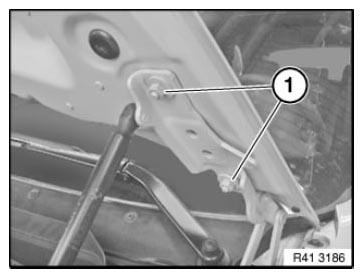

Unscrew nuts (1).
Remove engine compartment lid.
Installation:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust ENGINE COMPARTMENT LID .
