41 61 000 Removing And Installing Engine Compartment Lid
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Support engine compartment lid in fully opened position with suitable apparatus.
Necessary preliminary tasks
Disengage GAS PRESSURE SPRING from engine compartment lid hinge.
IMPORTANT:
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Procedure only applicable to vehicles without active pedestrian protection, AFGS.
Procedure only applicable to vehicles without active pedestrian protection, AFGS.

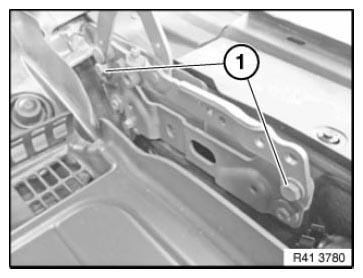

Release screws (1).
Tightening torque 41 61 2AZ .
Remove engine compartment lid.
Graphic similar.
Installation note:
Install engine compartment lid at screw locations to on hinge. This dispenses with the need for adjustment after installation.
If this is not possible, ADJUST ENGINE COMPARTMENT LID .
