41 21 510 Replacing Front Left Door Post (Front Side Panel Removed): Notes
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Procedure OBSERVE repair stage 3!
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

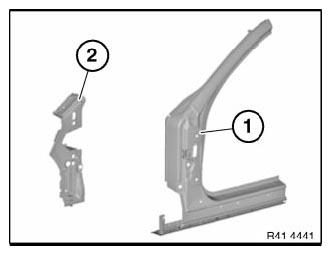

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) A-pillar, outer
- (2) Connection, side frame, rear
- (3) Shaped part, carrier support, wheel arch, front (not shown)
- (4) Shaped part, carrier support, wheel arch (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N7 | 7 |
| Blind rivets N3 | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 | |
| Cavity wax remover |
