Hexagon / straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread.

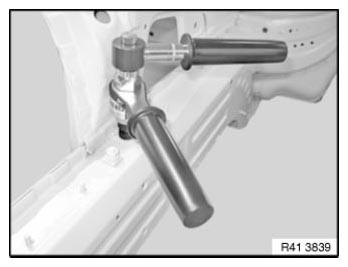

Fig 1: Setting Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon / straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

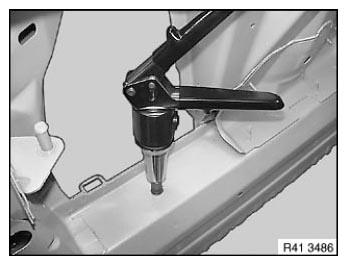

Fig 2: Checking Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread.
