Hexagon/straight shank rivet nut (up to thread 8) with hand rivet gun ZS308

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Failure to comply with these instructions may result in the drill bit slipping and causing significant paintwork damage.

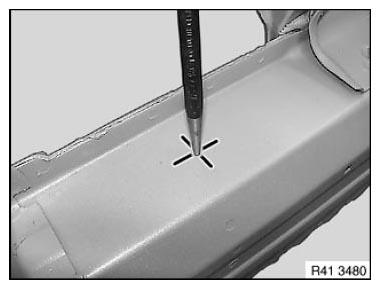

Fig 1: Identifying Hexagon/Straight Shank Rivet Nut Mark Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of bore and then punch-mark component
IMPORTANT: If the determined drill bit diameter is not observed:
the knurling on the straight shank rivet nut is rendered useless
the component will be damaged when the straight shank rivet nut is inserted

Determining suitable drill bit:

Depending on the rivet nut shank diameter, the next drill bit diameter higher (5/10 step) can be used.

E.g. with a shank diameter of 10.1 mm, the 10.5 mm drill bit can be used. The 11.0 mm drill bit must not be used.

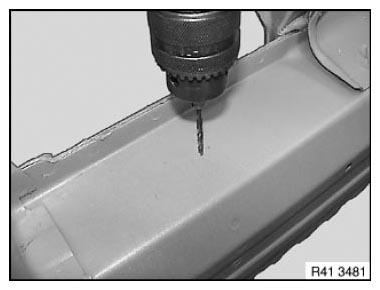

Drill bore with determined drill bit and deburr, pilot-drill with a smaller drill bit if necessary

Fig 2: Drilling Shank Rivet Nut Bore Using Drill Bit
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paintwork damage if necessary

Fig 3: Identifying Shank Rivet Nut Bore
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION.

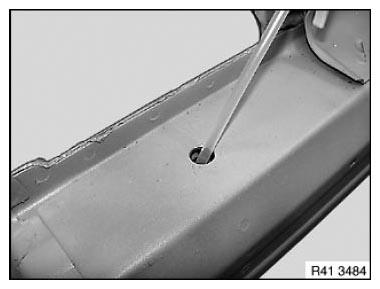

Preserving cavity

Fig 4: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow manufacturer's operating instructions.
Make sure straight shank rivet nut correctly contacts component.

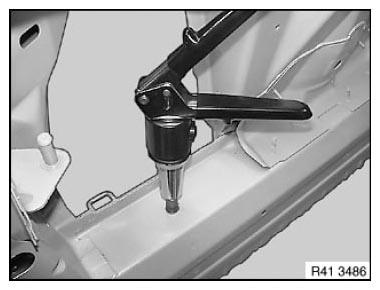

Set rivet nut with hand rivet gun

Fig 5: Setting Rivet Nut Using Hand Rivet Gun
Courtesy of BMW OF NORTH AMERICA, INC.
