65 50 160 Removing and installing/replacing cover for rear passenger compartment monitor at front
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
Necessary preliminary work
IMPORTANT:
Do not damage or scratch display.

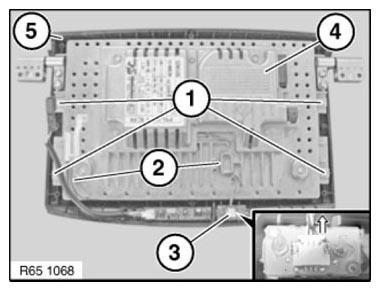

Release screws (1).
Tightening torque 65 50 1AZ .
Carefully disconnect plug connection (3).
Remove rear passenger compartment monitor (4) from cover (5).
Installation note:
Ensure correct cable routing in guides (2).
Make sure cover (5) is correctly seated on rear passenger compartment monitor (4).
