65 20 150 Removing and installing/replacing back-up aerial

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove backup aerial (3).

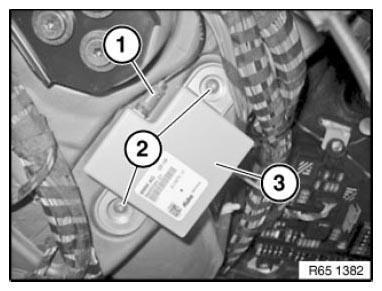

Fig 1: Identifying Backup Aerial, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
