72 12 000 Removing and installing or replacing airbag module on front passenger side
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorised experts.
Improper, unauthorised operations may result in serious dangers.
Unauthorised persons are strictly prohibited from performing any operations on this system.
Improper, unauthorised operations may result in serious dangers.
Unauthorised persons are strictly prohibited from performing any operations on this system.
WARNING:
Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Necessary preliminary tasks
- Disconnect NEGATIVE BATTERY CABLE .
- Remove DASHBOARD .

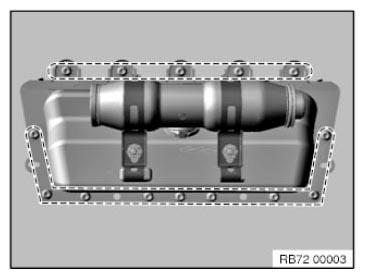

Release all screws on airbag module.
9 Schrauben = F06, F07, F12, F13, F18
14 Schrauben = F10, F11
Tightening torque 72 12 01AZ .
Remove airbag module from dashboard.
