61 31 898 Replace the relay for the air supply system

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe the SAFETY INFORMATIONS for handling the battery!
Follow instructions FOR DISCONNECTING AND CONNECTING BATTERY !
Observe notes on POWER SUPPLY /on intelligent battery sensor (IBS).

Necessary preliminary tasks

Remove SPARE WHEEL WELL TRIM PANEL .
Disconnect BATTERY EARTH LEAD .

Shown with removed battery!

Pull off and renew the relay (position 1) for the air supply system.

Installation note:

It is absolutely necessary to secure a new relay with 2 cable straps on the wiring harness (position 2) to prevent malfunctions due to water ingress.

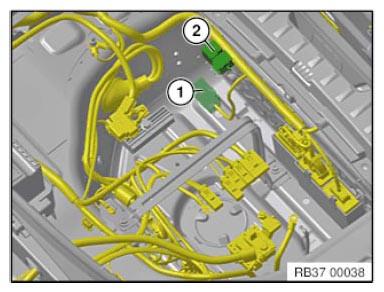

Fig 1: Identifying Air Supply System Relay And Relay With Cable Straps On Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Delete fault memory
