52 26 210 Removing and installing/replacing headrest for left or right rear seat

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (2) and move head restraint upwards to maximum extent.

Pull out head restraint (1) firmly.

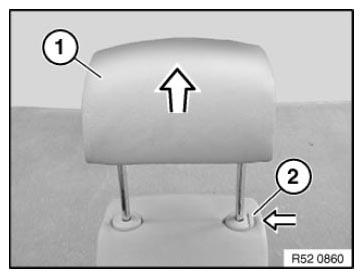

Fig 1: Pulling Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
