52 14 423 Replacing upholstery for front passenger seat backrest

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove backrest cover . See 52 14 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) , 52 17 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (COMFORT) or 52 16 408 REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT (SPORT) .

Remove dividing net (1) towards top.

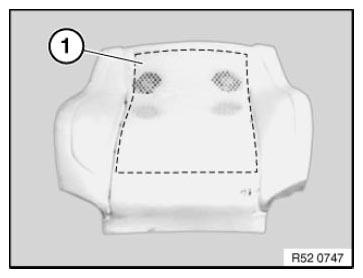

Fig 1: Identifying Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation note:

Make sure fans have correct cable routing (2) (cables point to each other).

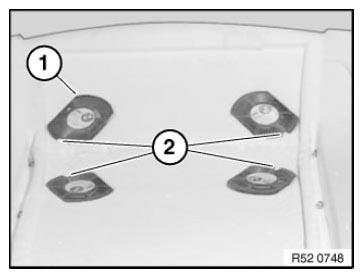

Fig 2: Identifying Fans And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
