52 14 417 Replacing upholstery for driver's seat

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

The operation for removing the upholstery is described in:

Replacing SEAT COVER FOR DRIVER'S SEAT .

Seat with air conditioning:

Unfasten plug connection.

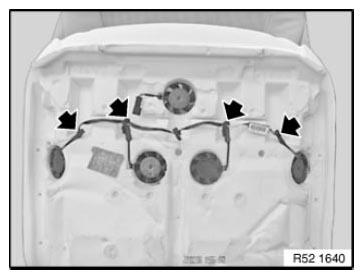

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dividing net (1).

Remove fans (2) from upholstery.

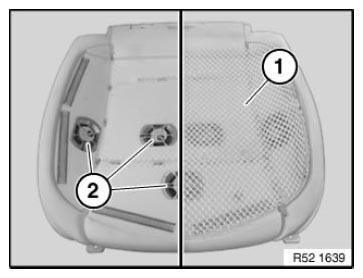

Fig 2: Identifying Dividing Net And Fans

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure fans have correct cable routing (1).

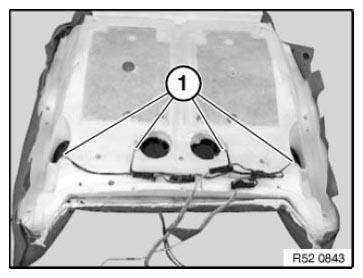

Fig 3: Identifying Fans Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
