52 14 208 Removing and installing/replacing left or right rear monitor trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Swing rear monitor (1) as pictured up into uppermost position.

Unfasten screws (2).

Pull rear monitor trim (3) forwards in direction of arrow and snap out in downward direction.

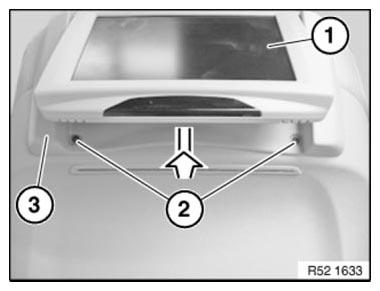

Fig 1: Pulling Rear Monitor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining lugs (1) on rear monitor trim (2) must be correctly seated in associated guides.

Retaining lugs (1) must not be damaged.

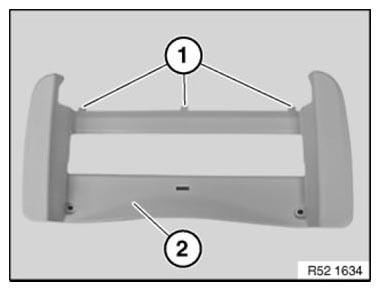

Fig 2: Identifying Retaining Lugs And Rear Monitor Trim

Courtesy of BMW OF NORTH AMERICA, INC.
