52 14 207 Removing and installing ambient light
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Remove rear panel . See 52 14 198 REMOVING AND INSTALLING OR REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST or 52 17 200 REMOVING AND INSTALLING/REPLACING UPPER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST on rear seat backrest.
NOTE:
The procedure for fitting the ambient light may differ, depending on the equipment specification.

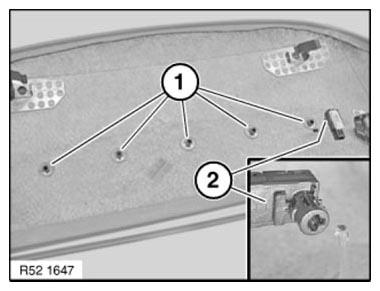

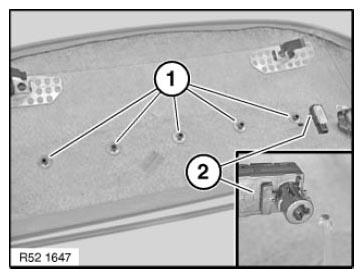

Version 1:
Release shaft clamping rings (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.

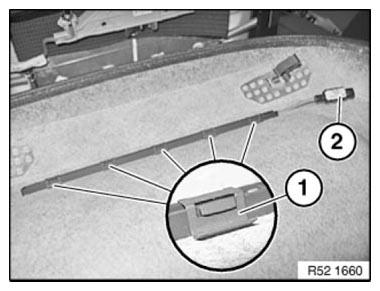

Version 2:
Loosen clamps (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.
