Rear cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat as far forward as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Press locking tab
Simultaneously detach cover

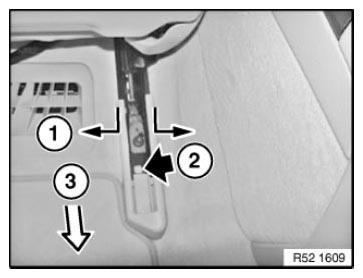

Fig 1: Disconnecting Seat Rails Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rear cover.

Installation note:

Retaining lugs must not be damaged.

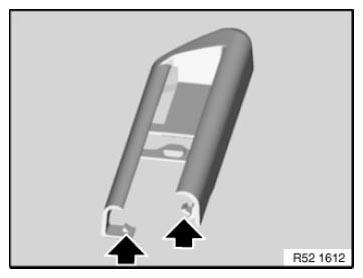

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
