67 13 001 Replacing drive unit for electrically operated left or right exterior mirror

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove MIRROR GLASS for inside mirror.

NOTE: Picture for example purposes only!

Release screw (1).

Remove drive for electrically operated exterior mirror (2) in direction of arrow from mirror housing (3).

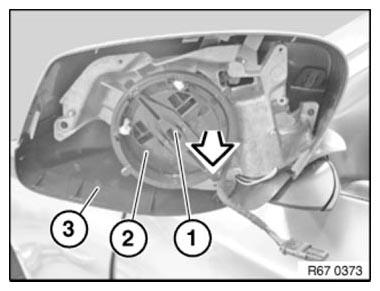

Fig 1: Removing Electrically Operated Exterior Mirror Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure pin housing (2) is correctly seated in connector housing (3).

Fit drive for electrically operated exterior mirror (1) so that mountings (4) slide in guides (5).

Fig 2: Identifying Electrically Operated Door Mirror, Pin Housing, Plug Housing And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
