31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 3 032
33 3 322

IMPORTANT: Rubber mount may only be renewed once!

Necessary preliminary tasks

Check ball joints of trailing links while installed, replace TRAILING LINK if necessary.
Remove TRAILING LINK.

IMPORTANT: If the trailing link already features an identification mark with a centre punch, it is necessary to replace the trailing link.

Mark trailing link with a punch mark in area (A).

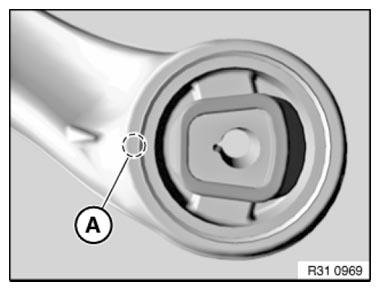

Fig 1: Identifying Punch Mark On Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

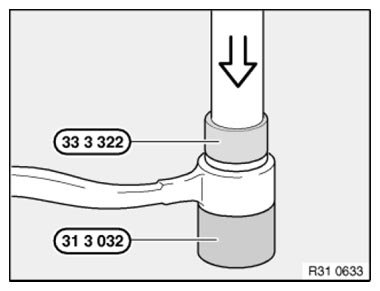

Fig 2: Pressing Rubber Mount Out Of Tension Strut Using Press And Special Tools (33 3 322, 31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mount using notch to marking on trailing link and press in.

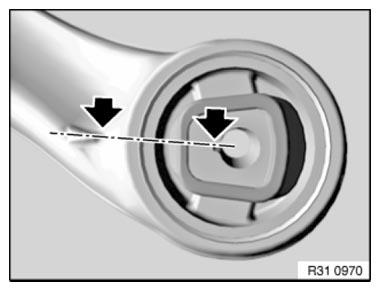

Fig 3: Aligning Rubber Mount Using Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 4: Identifying Protusion
Courtesy of BMW OF NORTH AMERICA, INC.
