22 32 055 Removing and installing/replacing transmission bearing block

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Replace RUBBER MOUNT  for transmission mounting.

Remove transmission support block from transmission.

Installation note:

Tightening torque 22 32 1AZ .

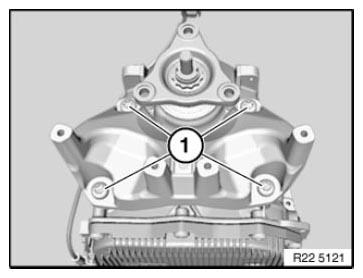

Fig 1: Identifying Transmission Support Block Mounting Bolts
G08484248Courtesy of BMW OF NORTH AMERICA, INC.
