51 24 133 Removing and installing/replacing drive for Soft Close Automatic on rear lid (top) (soft closure aid)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Partially remove REAR SPARE WHEEL WELL TRIM PANEL (rear expanding rivets).

Unclip (2) drive (3).

Disconnect plug connection (1) and disengage at lock actuator.

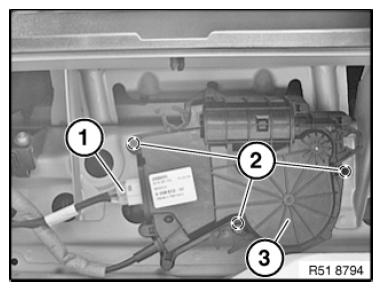

Fig 1: Identifying Drive, Plug Connection And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable at counter support (1) and lock lever (2) of luggage compartment lock (rear lid, top).

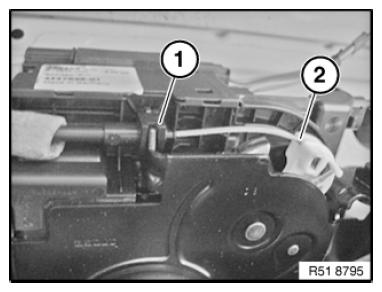

Fig 2: Identifying Bowden Cable Counter Support And Lock Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with lower rear lid open.
