51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

IMPORTANT: Make sure that body is not damaged.

Open door at front and rear.

Release edge protection in C-pillar area.

Pull off gasket (1) in rear area toward the bottom.

Release screw (2).

Tightening torque 51 13 6AZ .

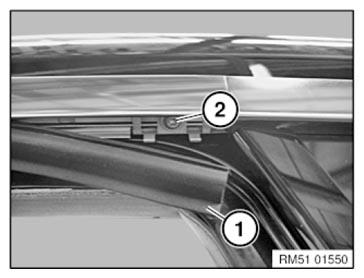

Fig 1: Identifying Gasket And Screw At Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Starting from the rear, use special tool 00 9 325 to detach trim strip (1) from clips (2).

Installation note:

To avoid leaks and noises, check all clamps (2) for visible damage.

If necessary, replace faulty clips (2).

Align clamps (2) on body and fit trim strip (1).

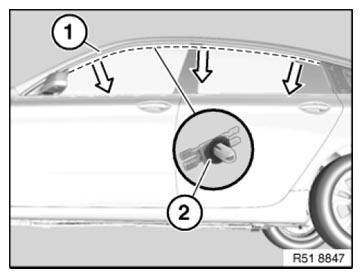

Fig 2: Removing Plastic Clips From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Carry trim strip by its middle section only (risk of damage)
Perform installation work with a second person helping
Prepositioning of trim strip
Ensure gutter strip runs parallel to side frame (risk of breakage)
