51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary work

Remove FRONT DOOR SILL COVER STRIP .
Remove REAR DOOR SILL COVER STRIP .

NOTE: Shown removed here for purposes of clarity.

Remove edge protection in area of trim panel (3).

Unclip clips (1) from trim panel (3) in upward direction.

Unclamp clamps (2) towards inside.

If necessary disconnect plug connections located behind them.

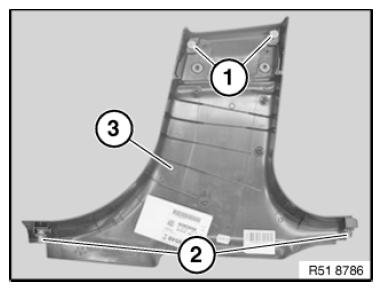

Fig 1: Identifying Trim Panel, Clamps And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and (2) must not be damaged.

Installation note for trim panel with air duct:

Air duct (1) must be correctly engaged in associated air duct (2).

Guide lug (3) must be correctly inserted in associated guide in floor pan.

All plastic clips (4) must be undamaged.

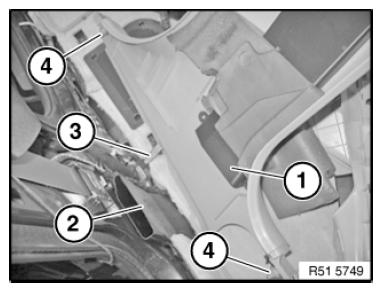

Fig 2: Identifying Air Duct, Plastic Clips And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Reposition clips (1) and (2) on door post trim panel (3).

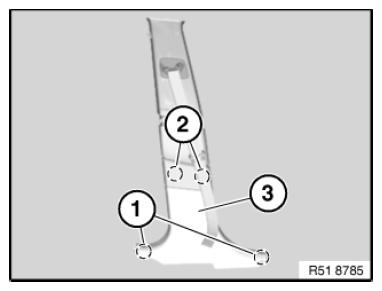

Fig 3: Identifying Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
