Ideal setting of the retraction depth (rear window glass, retractable)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: In order to adjust the retraction depth, 2 special tool 51 3 080 are required.

Open rear door
Attach special tool 51 3 080 to door window glass
Close rear door
Measure retraction depth

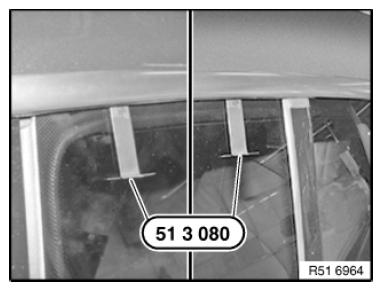

Fig 1: Adjusting Retraction Depth Using Special Tool (51 3 080)
Courtesy of BMW OF NORTH AMERICA, INC.

Measure retraction depth (C) in areas (A and B).

Retraction depth (C):

A = 2.8 ± 0.7 mm

Gap between measuring point and window edge = 20 mm

B = 2.8 ± 0.7 mm

Distance from measuring point to window guide = 20 mm

NOTE: Reference point for retraction depth is edge to roof frame strip (1).

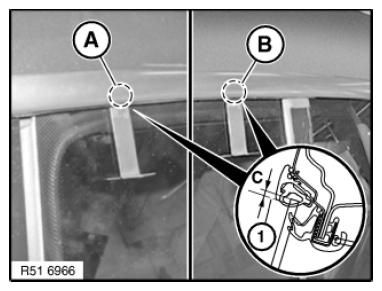

Fig 2: Identifying Retraction Depth

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rear door must open and close without the door window glass touching the roof trim strip (risk of damage)
