Ideal setting of the retraction depth (rear window glass, fixed)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Open rear door
Insert and hold special tool 51 3 080 onto door window glass and hold
Close rear door
Measure retraction depth

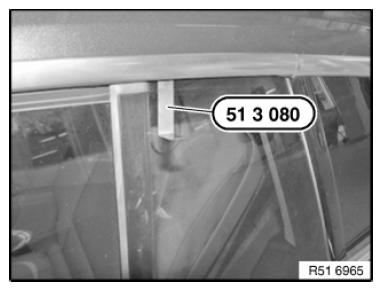

Fig 1: Inserting Special Tool (51 3 080) Onto Door Window Glass
Courtesy of BMW OF NORTH AMERICA, INC.

Measure retraction depth (C) in area (A).

Retraction depth (C):

A = 2.8 ± 0.7 mm

Distance from measuring point to window guide = 10 mm

NOTE: Reference point for retraction depth is edge to roof frame strip (1).

IMPORTANT: Rear door must open and close without the door window glass touching the roof trim strip (risk of damage)

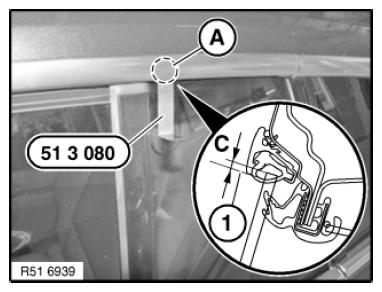

Fig 2: Measuring Retraction Depth Using Special Tool (51 3 080)

Courtesy of BMW OF NORTH AMERICA, INC.
