51 13 416 Removing and installing/replacing rear lid trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Trim must be carefully unclipped due to risk of damage.

Grip trim (1) in center and unclip at points (2).

Fig 1: Identifying Trim And Uncliping Points
G08421697Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

  1. Clips
  2. Clip bracket

If necessary, replace faulty parts.

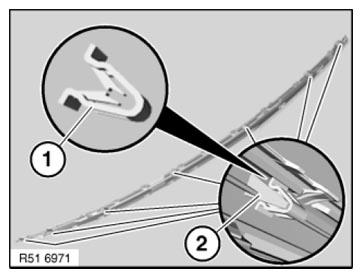

Fig 2: Identifying Clips And Clip Bracket
G08421698Courtesy of BMW OF NORTH AMERICA, INC.
