51 13 400 Removing and installing or replacing rear center trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove number plate.

NOTE: Detaching rear center trim is shown on the left side; proceed in same way for detaching on the right side.

Remove stop pad (4) on tailgate (3).

Release nut (1) on rear center trim (2).

Tightening torque 51 13 1AZ .

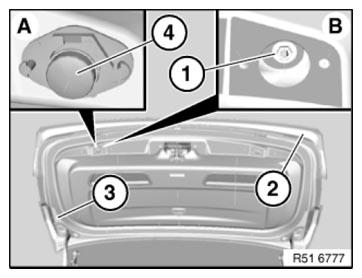

Fig 1: Identifying Tailgate, Rear Centre Trim, Stop Pad And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on rear trim panel (2).

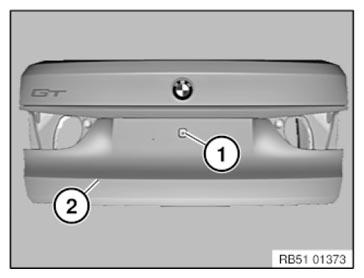

Fig 2: Identifying Rear Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plastic clips (1) with tailgate opened.

Remove complete rear trim.

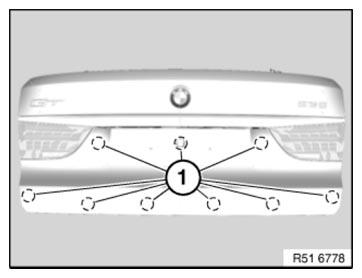

Fig 3: Identifying Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty plastic clips (1).

If necessary, replace faulty gasket (3).

If necessary, replace faulty screw clamp (2).

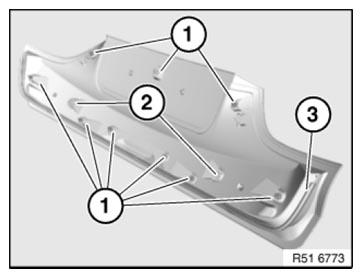

Fig 4: Identifying Plastic Clips, Gasket And Screw Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
