51 22 225 Removing and installing or replacing inside door opener in left or right rear door
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR DOOR TRIM PANEL .

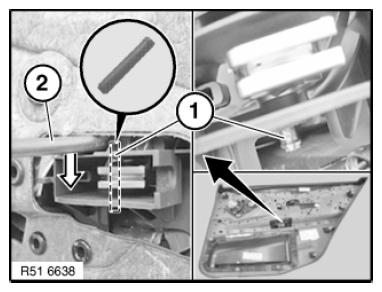

Unlock hinge bolt (1) with screwdriver (2) in direction of arrow.
Secure door opener (2) against falling out.

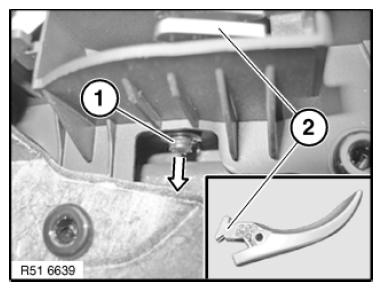

Pull out hinge bolt (1) in direction of arrow with a suitable tool until door opener (2) is free.
Do no pull out hinge bolt entirely.
Installation:
Hinge bolt (1) must snap clearly into place.
Check hinge bolt (1) for damage and replace if necessary.
