51 12 164 Removing and installing/replacing trim on bumper trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

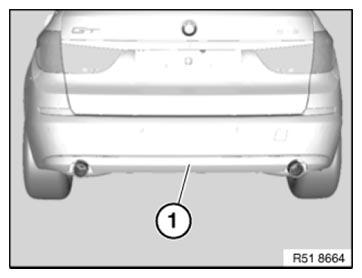

Fig 1: Identifying Rear Bumper Trim
G08421673Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs and guides on rear bumper trim (1) must not be damaged.

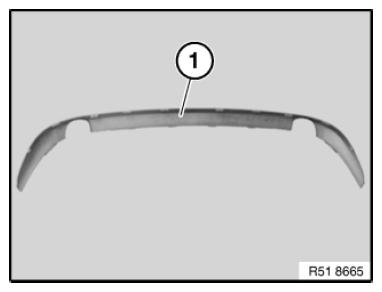

Fig 2: Identifying Rear Bumper Trim
G08485537Courtesy of BMW OF NORTH AMERICA, INC.
