51 12 050 Removing and installing/replacing support for rear bumper panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR BUMPER TRIM .

Release nut (1) from exhaust bracket on left or left and right.

Tightening torque 51 12 8AZ .

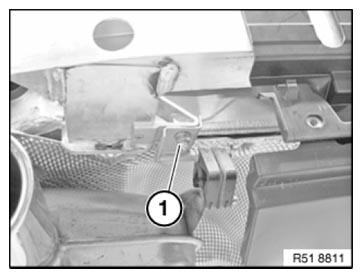

Fig 1: Identifying Exhaust Bracket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

For trailer tow hitch only:

Disconnect plug connections of trailer tow hitch.

Remove support for rear bumper trim (4).

Replacement

Release expanding rivets (2).

Modify adapter (3).

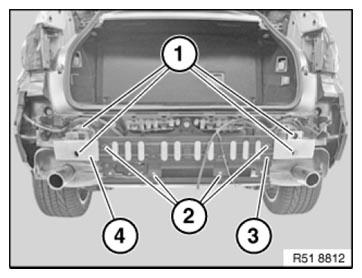

Fig 2: Identifying Rear Bumper Trim, Nuts, Expanding Rivets And Adapter

Courtesy of BMW OF NORTH AMERICA, INC.
