Removal procedure

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Protect decorative trim (1) against scratches.

Open protective cap (2) of cup holder halfway.

Unclip decorative trim (1) on handle strip (3) away from protective cap (2) and remove.

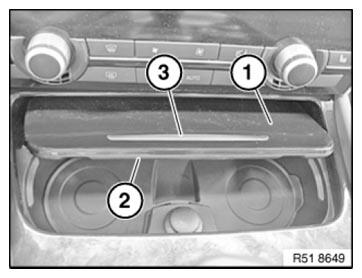

Fig 1: Identifying Decorative Trim, Protective Cap Of Cup Holder Halfway And Handle Strip
G08421721Courtesy of BMW OF NORTH AMERICA, INC.
