51 16 355 Removing and installing/replacing driver's side hinged compartment

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Release screws (1).

Tightening torque 51 45 6AZ .

Remove fold-down compartment on driver's side (2) in direction of arrow while unclipping or detaching at the bottom

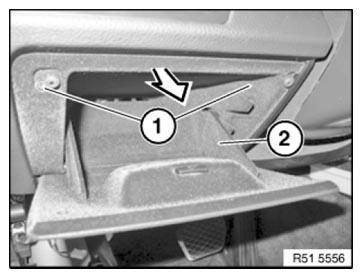

Fig 1: Removing Fold-Down Compartment On Driver's Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure driver's side hinged compartment (2) is correctly seated.

In F01/02/03 only:

Replace defective retainers (1).

Replacement

In F01/02/03 only:

Modify clamps (1).

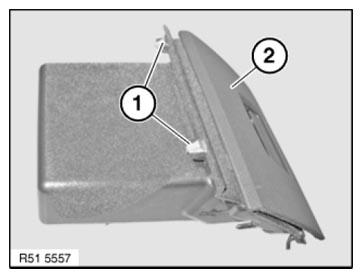

Fig 2: Identifying Driver's Side Hinged Compartment And Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

In F01/02/03 only:

Release screws (1) and fit handle on fold-down compartment.

Tightening torque 51 45 7AZ .

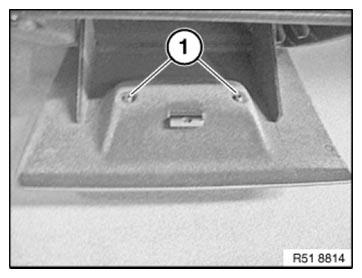

Fig 3: Identifying Screws On Fold Down Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
