51 16 202 Removing and installing/replacing front cup holder

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Remove CENTRE CONSOLE TRIM .

Remove foam strip (1).

Installation:

If necessary, replace foam strip (1).

Release screws (2) on left and right from center console cover (3).

Fig 1: Identifying Foam Strip And Center Console Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from cup holder and remove cup holder.

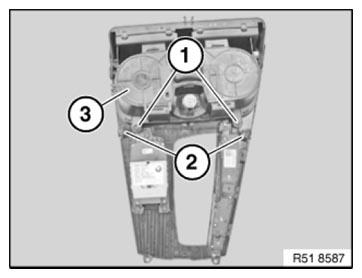

Fig 2: Identifying Cup Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

MODIFY DECORATIVE TRIM OF cupholder.
