51 16 195 Removing and installing/replacing center armrest

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

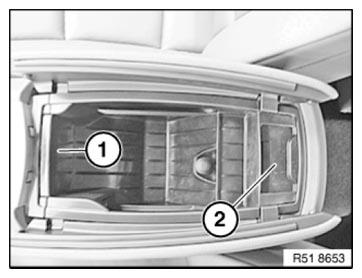

Pull the front mat insert (1) up and remove.

Then pull the rear mat insert (2) up in the front and remove.

Installation:

Cleanly adjust rubber nipples and lugs of mat inserts.

Fig 1: Identifying Front And Rear Mat Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

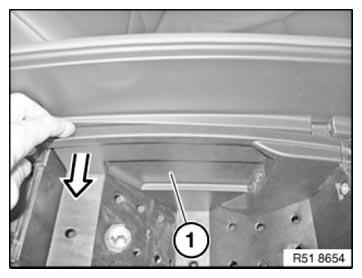

First pull left and right center console covers (1) back toward the inside, then unhook in the front and remove.

Fig 2: Pulling Left And Right Centre Console Covers

Courtesy of BMW OF NORTH AMERICA, INC.

For telephone outfitting version:

Remove EJECT BOX .

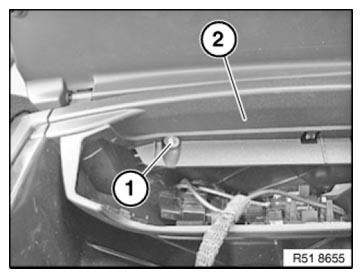

Release screw (1) on center console right cover (2).

Remove cover (2) as described above (Eject-Box and cover (2) remain in the storage compartment).

Installation:

Adjust covers. On the left, also note USB / AUX-IN port.

Fig 3: Identifying Centre Console Right Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

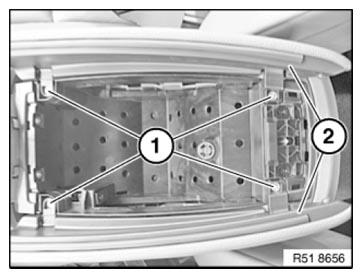

Release left and right bolts (1) on center armrest (2).

Tightening torque 51 16 13AZ .

Remove center armrest (2).

Fig 4: Identifying Bolts On Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
