51 16 063 Removing and installing/replacing inside mirror (overview)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rear-view mirrors with modified mirror base are installed starting with series launch F20 and all following new productions.
Observe new repair instructions!

Further introduction dates:

F01, F02, F03, F06, F07, F10, F11, F12, F13, F18	07/2012
F25	03/2012

Distinguishing feature:

old version, small mirror base (1) with round base plate on windscreen
new version, large mirror base (2) with square base plate on windscreen

NOTE: Dismantling of mirror cap is identical on both versions.

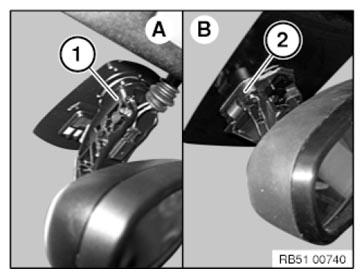

Fig 1: Identifying Small And Large Mirror Base

G08421781

Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end cap:

old version

Fig 2: Identifying Old Version With Mirror Arm End Cap
Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying New Version With Mirror Arm End Cap

G08421783

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Rain Sensor

G04728218

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying High-Beam Assistant

G04728219

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Toll interior mirror for Japan:

Fig 6: Identifying Toll Interior Mirror

G04728220

Courtesy of BMW OF NORTH AMERICA, INC.
