51 23... Removing/installing ball sockets with clip
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury! When installed, the gas pressurized shock absorber is under preload. Minimise preload as far as possible before removing.
IMPORTANT:
Never lift off ball socket with engaged clamp.

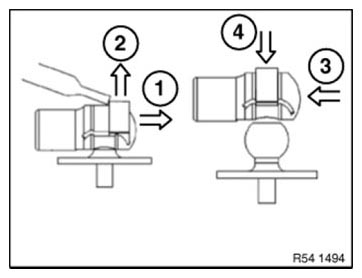

Disassembly/assembly
- Push on clamp in direction of groove with screwdriver
- Lift off ball socket from ball pin
- Slide clamp back
- Fit ball socket on ball stud and snap into place with force
Installation note:
Replace overstretched clips.
Pack grease into two opposite positions in socket. The grease spreads after installation on the ball pin all round in the ball socket.
