51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

Fig 1: Identifying Engine Compartment Lid, Bowden Cables, Release Element And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

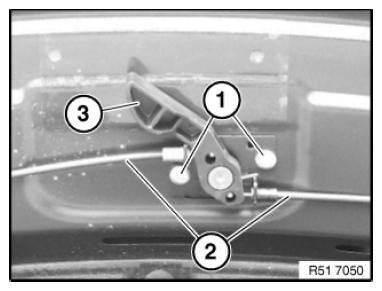

Fig 2: Identifying Bowden Cables, Release Element And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
