51 23 110 Removing and installing/replacing left engine compartment lid lock

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove SERVICE FLAPS, LEFT AND RIGHT .

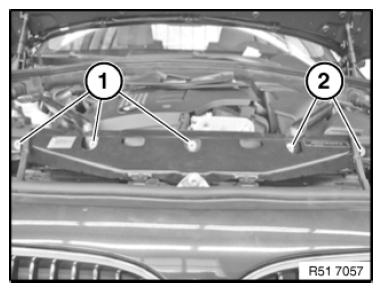

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

Fig 1: Identifying Engine Compartment Lid Lock Screws

G08485784

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and lock carrier (3).

Fig 2: Identifying Bowden Cable, Release Lever And Lock Carrier

G08485785

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

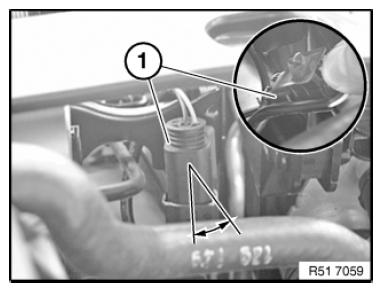

Detach plug connection (1) by twisting from catch carrier.

Unlock plug connection (1) and disconnect.

Fig 3: Identifying Plug Connection

G08485786

Courtesy of BMW OF NORTH AMERICA, INC.

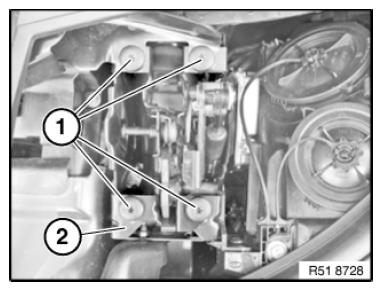

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

Fig 4: Identifying Engine Compartment Lid Lock And Screws

G08485787

Courtesy of BMW OF NORTH AMERICA, INC.

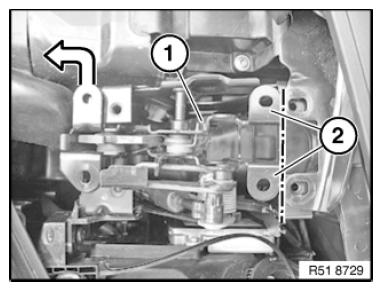

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line).

Fig 5: Pushing Engine Compartment Lid Lock

G08485788

Courtesy of BMW OF NORTH AMERICA, INC.

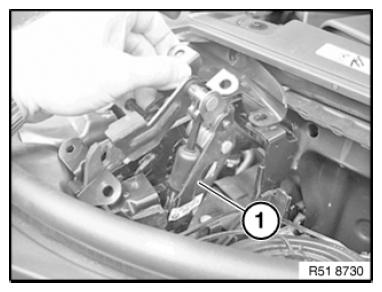

Lift out engine compartment lid lock (1) at rear.

If necessary, feed out cable from microswitch for anti-theft alarm system.

Remove engine compartment lid lock (1).

Fig 6: Removing Engine Compartment Lid Lock

G08485789

Courtesy of BMW OF NORTH AMERICA, INC.
