51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: Trim strip (1) must not be bent during removal.

Starting at bottom, unclip trim strip (1) 00 9 317 from tabs (2) in succession with special tool.

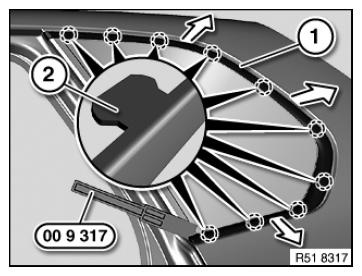

Fig 1: Removing Trim Strip From Tabs Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (2) must not be missing or damaged.

Lock Dual-Look (1) on trim strip by applying pressure.

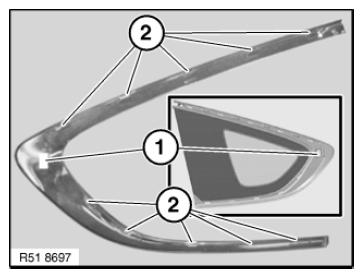

Fig 2: Identifying Tabs And Dual-Look On Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.
