51 71... Installing and removing/replacing vehicle hoist mounting

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 330

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.

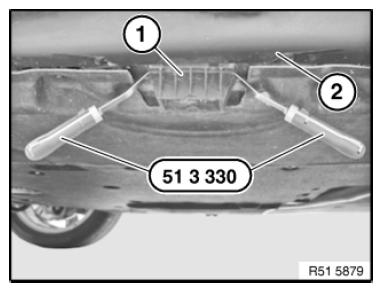

Fig 1: Removing Vehicle Hoist Mounting And Vehicle Underbody Using Special Tool (51 3 330)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of corrosion!
Touch up paintwork damage.
Re-establish wax layer.
