51 71 015 Removing and installing/replacing left or right underbody panelling
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

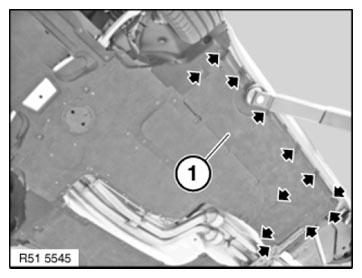

Graphic is only an example. There may be differences in specific details depending on engine version.
Unscrew all bolts.
Tightening torque 51 75 1AZ .
Remove underbody panelling (1).
Installation note:
Make sure underbody panelling (1) is correctly seated.
