51 49 028 Removing and installing center water gutter cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Pull off mucket in upper area of rear lid.

Release expansion rivet (1).

Remove trim (3) in direction of arrow from guide (2).

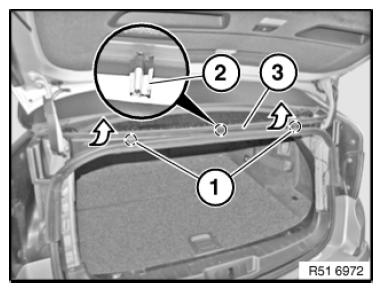

Fig 1: Removing Trim From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Guide (2) and pin (1) must not be damaged.

Replace water gutter (3) if necessary.

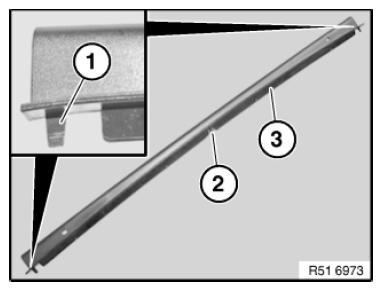

Fig 2: Identifying Water Gutter, Guide And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If clip mountings are removed during further operations (e.g. painting), always replace these mountings to ensure watertightness.
