51 31 310 Removing and installing upper rear lid cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 010

Necessary preliminary tasks

Remove TRIM PANEL FOR REAR LID AT TOP .

Unscrew nuts (3).

Tightening torque 51 71 1AZ .

Unfasten screws (2).

Tightening torque 51 71 1AZ .

Close rear lid (4) and unclip clips (1).

Remove rear lid cover.

IMPORTANT: Carefully remove cover in upward direction from rear lid (4) (with aid of a 2nd person) and place on a clean surface.

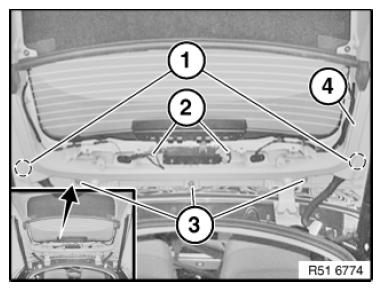

Fig 1: Identifying Rear Lid, Clips, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (3), slider (1) and bump stop (4) must not be damaged.

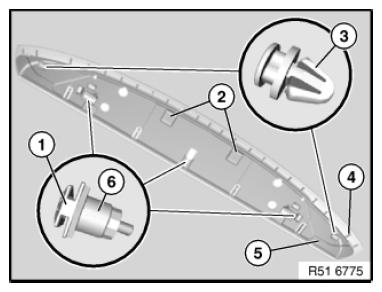

Fig 2: Identifying Clips, Slider And Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out height adjustment (A) of rear lid cover (5) via 16 mm WAF adjusting screws (6) (bihexagonal).

Make sure there is a uniform gap all round. Measure underprotrusion with special tool 51 0 010 :

A 1±1 mm

B 5±1 mm

X 1...4 mm

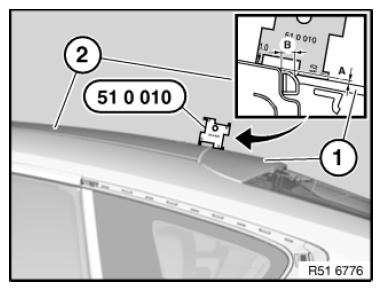

Fig 3: Measuring Underprotrusion Using Special Tool (51 0 010)

Courtesy of BMW OF NORTH AMERICA, INC.
