Ideal setting, preload

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pre-tension can be checked with or without weather strip. Pre-tension is 1.0 mm less with weather strip.

Insert the special tool 51 0 341 in the rotary striker of the door lock and close the rotary striker manually.

Close the door carefully up to the point where the special tool 51 0 341 magnetically adheres to the striker (= defined door opening angle for measurement).

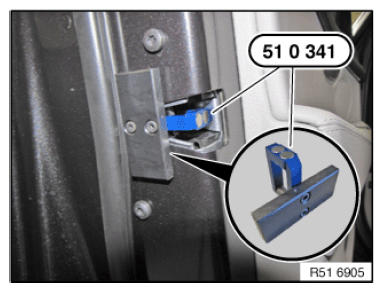

Fig 1: Inserting Special Tool (51 0 341) In Rotary Striker Of Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

No force must be exerted on the door or door window glass during measurement.

NOTE: The special tool 51 0 342 must contact the sheet metal flange

Slide special tool 51 0 342 at distance (B) of door window glass lateral edge into seal (1). Measure dimension (A) to door window glass (2).

Dimension (A) with weather strip:

A = 51 ±1 mm

Dimension (A) without weather strip:

A = 52 ±1 mm

B = 30 mm

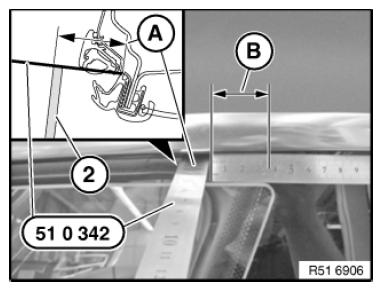

Fig 2: Measuring Door Window Glass Dimension (A) Using Special Tool (51 0 342)

Courtesy of BMW OF NORTH AMERICA, INC.
